About this item

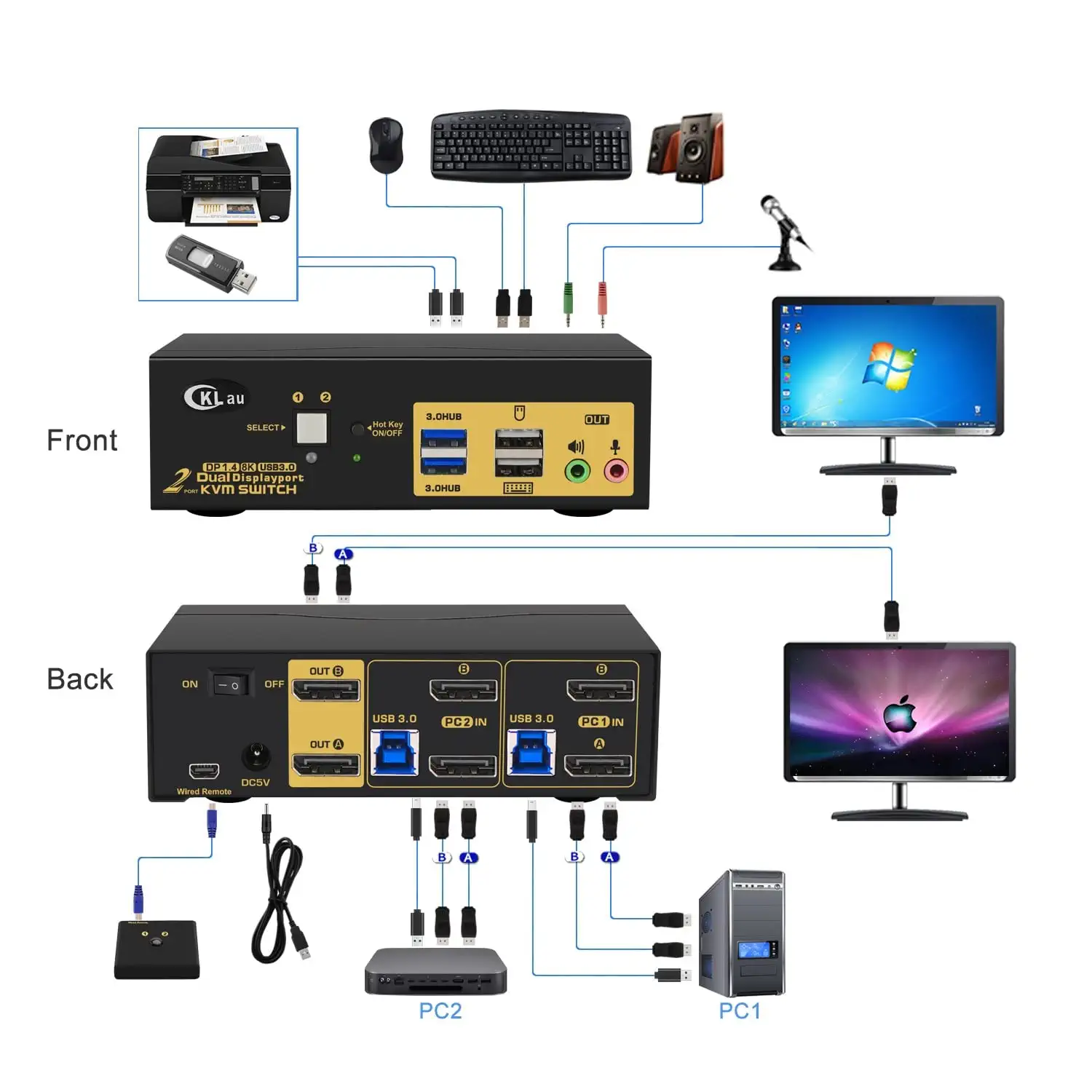

  • 2 DisplayPort-interface computers sharing one set of keyboard & mouse, 2 monitors, audio, microphone and 2 pcs USB 3.0 peripheral devices. With audio and microphone output, 2 pcs USB 3.0 hub (data transferring rate up to 5Gbps/s,10 times faster than USB 2.0), 2 kits 4.9ft(1.5m) cables, and a wire remote push button switch. (Tips: this KVM switch required your computer with 2 or multi-video output)

  • Resolution compatible 7680x4320@30Hz, 3840x2160@144hz, and lower resolution. Drive-free for Windows 10/7/2000/XP/Vista, Linux, Mac, Debian, Ubuntu, Fedora, Raspbian, Ubuntu, etc.

  • Support wired/wireless/unify keyboard and mouse, Apple keyboard (hotkey is changeable), touch screen, OLED screen, 16:9 widescreen, 21:9 ultra-wide monitors, etc. It can switch by mouse or keyboard independently, even without USB signal input, such as Apple TV, Android TV box, etc. And it can enter into the BIOS interface directly.

  • Four switching way optional: Hotkey switching(Num Lock + Num Lock + 1 / 2 + Enter, or Ctrl + Ctrl + 1 / 2 + Enter, or Scroll Lock+ Scroll Lock+1 / 2 + Enter), mouse switching (click mouse wheel 2 times), manual button switching, wired remote push button switching.

  • Support 3 display modes: extended display, mirror display, and spliced display. Support auto detection, auto scan, waking up, with memory function in case of power-down.

Connector Type       DP

Switch Type              KVM Switch

Material                     Metal

Circuit Type              4-way

Mounting Type         Surface Mount,                                                   Wall Mount

Actuator Type           Push Button

Control Method        Remote

 In Stock

CKLau-622DP-4
2 Port USB 3.0 Dual Monitor DP KVM Switch,
 4K@144Hz, 8K@30Hz
